Pictures

Posted: Sat Mar 01, 2025 6:49 am
by Heikki

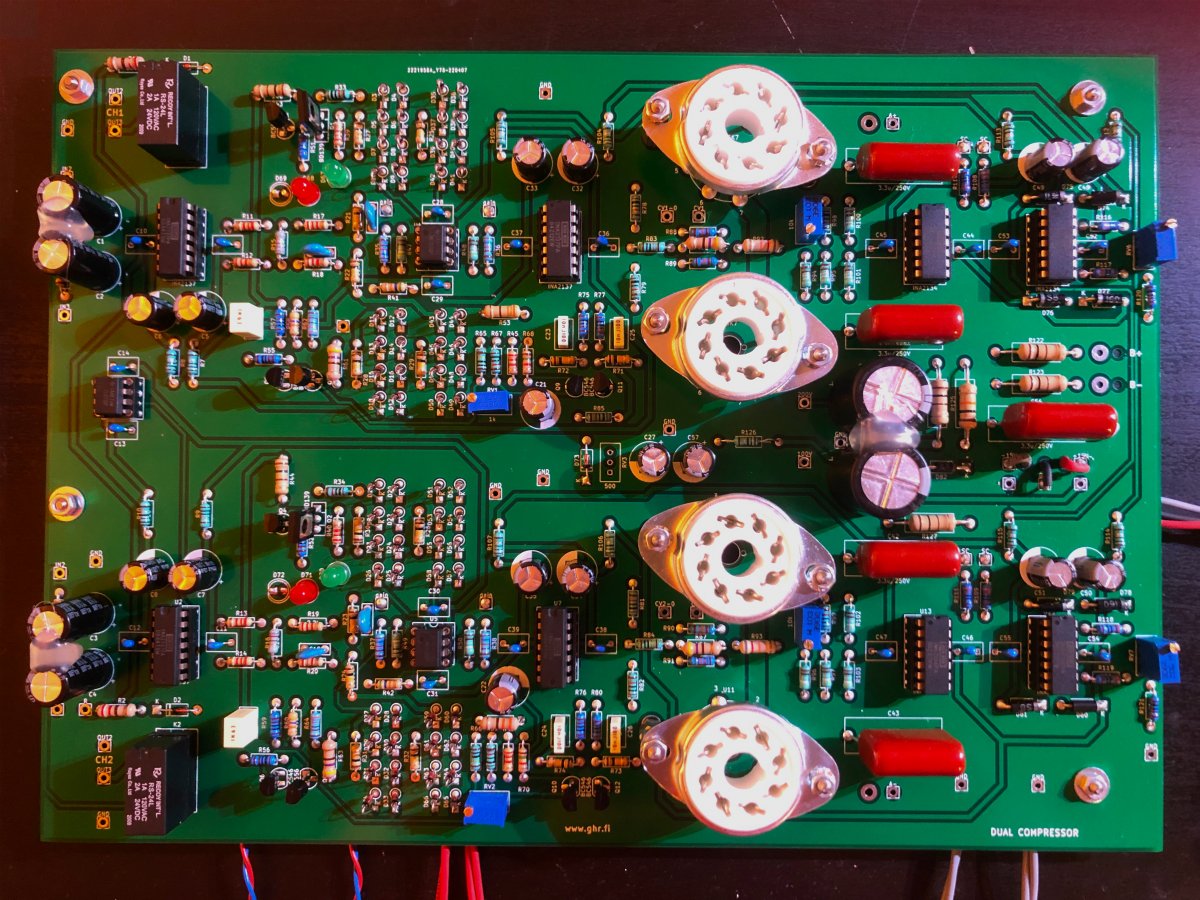

Board

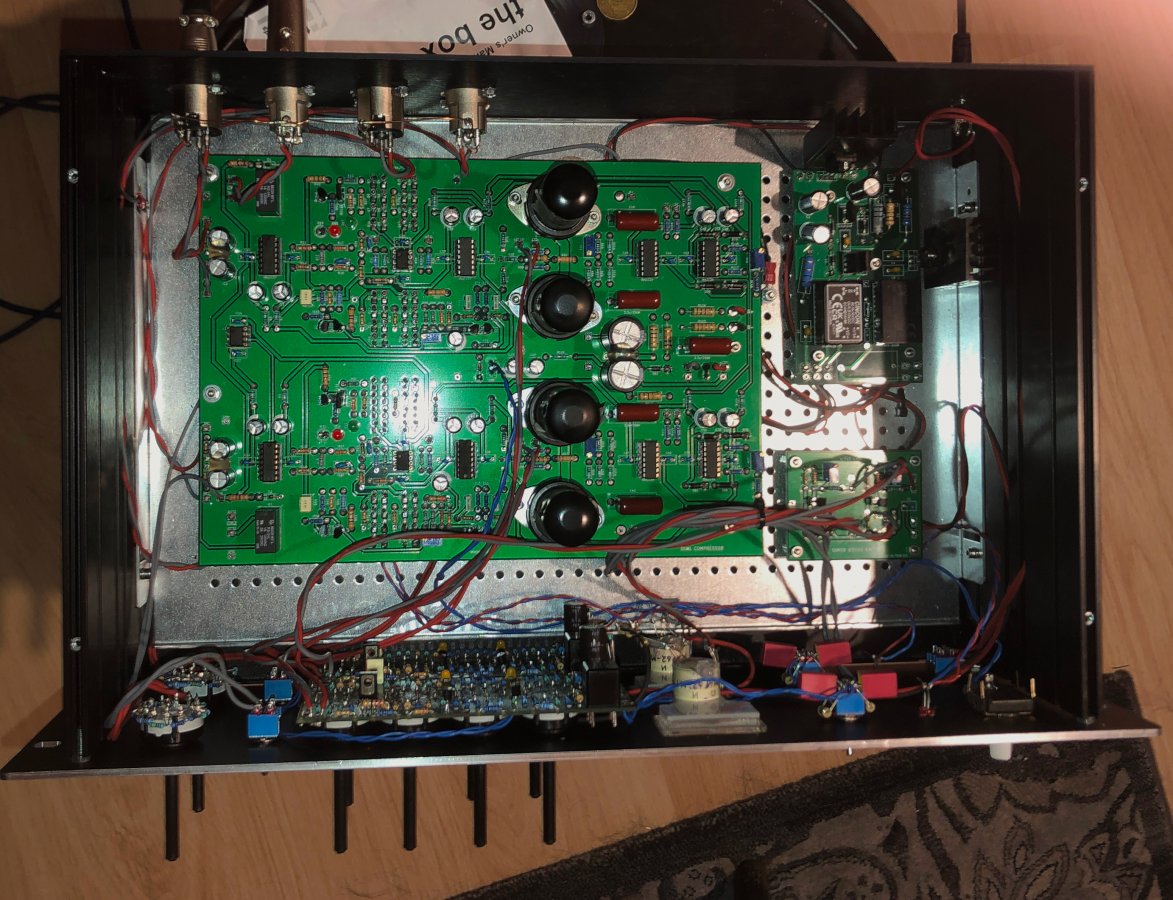

Inside

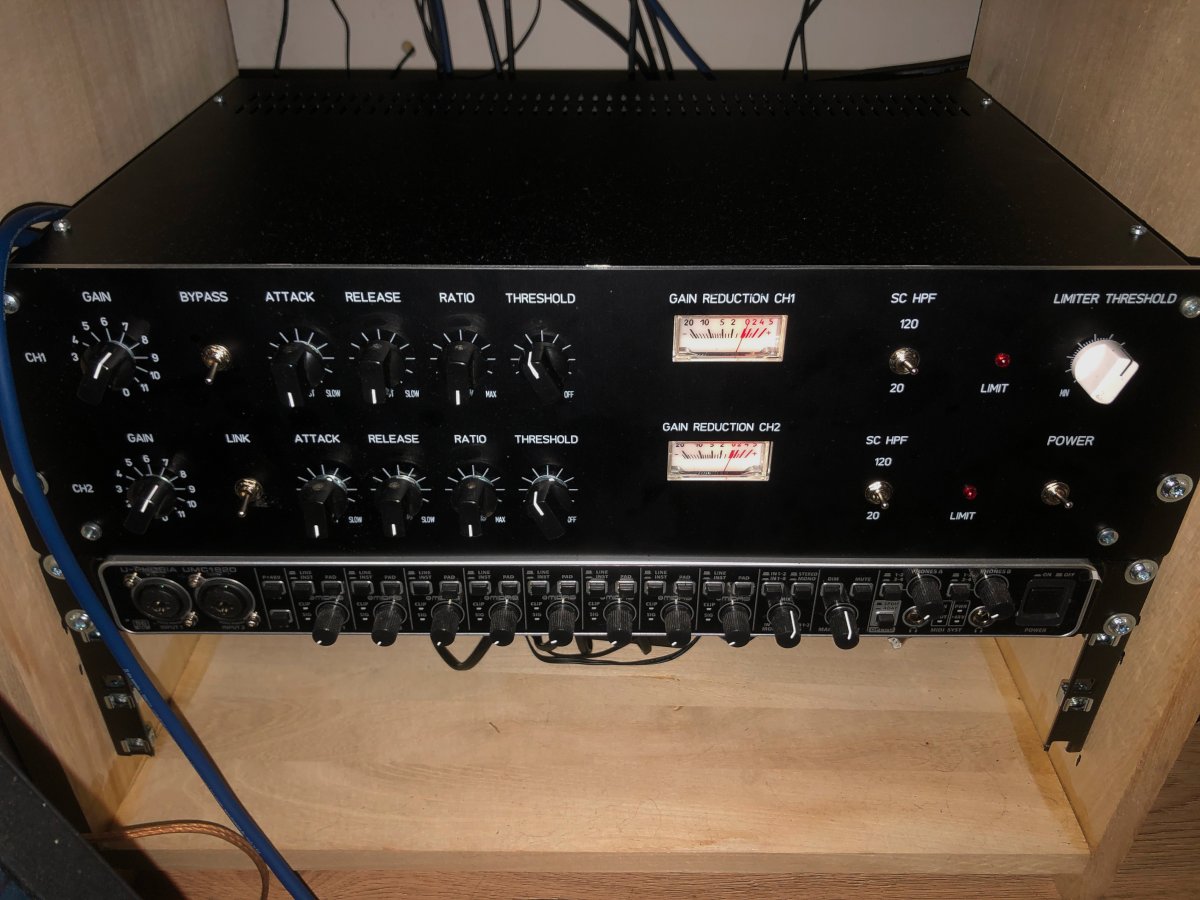

Front Panel

Re: Pictures

Posted: Wed Apr 02, 2025 10:21 pm
by JMan
I see thermal adhesive on three (I think) pairs of electrolytic capacitors. Is this recommended for keeping their capacitances fairly consistent with each other during operation?

Re: Pictures

Posted: Thu Apr 03, 2025 6:16 am
by Heikki
It’s just hot glue to keep the tall capacitors in their place during transport or rough handling. Definitely not needed if the unit just sits in a rack in a studio.
