32 Diode Bridge Compressor
Posted: Sat Dec 03, 2022 12:58 pm
Schematic
Layout
Gerber Files here
viewtopic.php?t=104
viewtopic.php?t=104

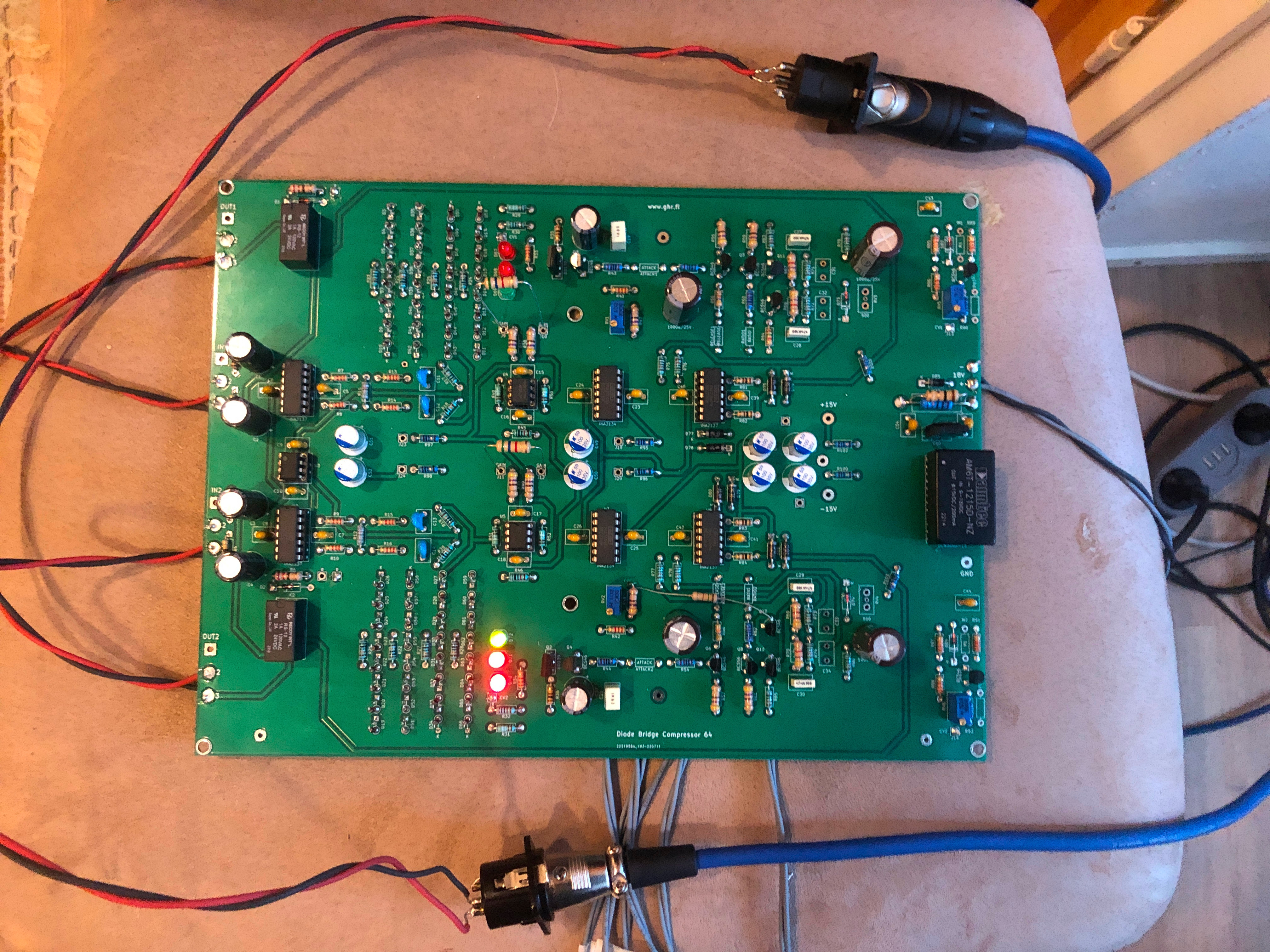

- 64proto1.jpg (2.97 MiB) Viewed 82556 times
Page 1 of 3
First build
Posted: Tue Feb 14, 2023 6:31 pm
Testing the build
Re: First build
Posted: Wed Feb 15, 2023 11:13 pm
Some polymer caps ..
Re: First build
Posted: Thu Jan 04, 2024 3:29 am
Had some interested in a 1U version. Seems like it would be easy enough to mount the sidechain boards and just wire pots in? Could use those dact type stepped pots even and only have a single set of knobs for stereo since those are dual gang?
Stepped switches would be a lot to wire...
Talking about the first revision boards..Not sure how big the new ones are??
Stepped switches would be a lot to wire...
Talking about the first revision boards..Not sure how big the new ones are??
Re: First build
Posted: Thu Jan 04, 2024 7:59 am
This version has the everything on one board. There's no separate sidechain boards. Pots or rotary switches are wired from the board.
Re: First build
Posted: Thu Jan 04, 2024 2:23 pm
I didn't realize that. The new diode version doesn't use the sidechain boards?
It wasn't clear in the build pic but it wasn't really a build I guess....
It wasn't clear in the build pic but it wasn't really a build I guess....
Re: First build
Posted: Fri Jan 05, 2024 6:50 am
In the picture the grey wires coming from underneath the board are wires to the potentiometers.
Re: First build
Posted: Sun Jan 07, 2024 6:55 pm
Very cool design! What are the dimensions of the board? Also, how much current does it draw?
Re: First build
Posted: Mon Jan 08, 2024 10:50 am
Current draw at idle is maybe 60mA. Current draw will be more if the output is driving 600 ohm loads, but those are rare these days. I used a 18V/1A wall wart for power.
I'll check the dimensions when I get home.
I'll check the dimensions when I get home.
Re: First build
Posted: Mon Jan 08, 2024 5:23 pm
Dimensions are 270mm x 200 mm.
