Simple low power tube HiFI amp

[Heikki]

Here's a simple tube amp I'm building next. It is very simple single ended amp with EL84 output tubes.

I'll be posting pictures when the project progresses.

Schematic

hifisimple.pdf

(209.67 KiB) Downloaded 751 times

Gerber files for the board

hifisimple-200mmx100mm.zip

(227.72 KiB) Downloaded 656 times

[Heikki]

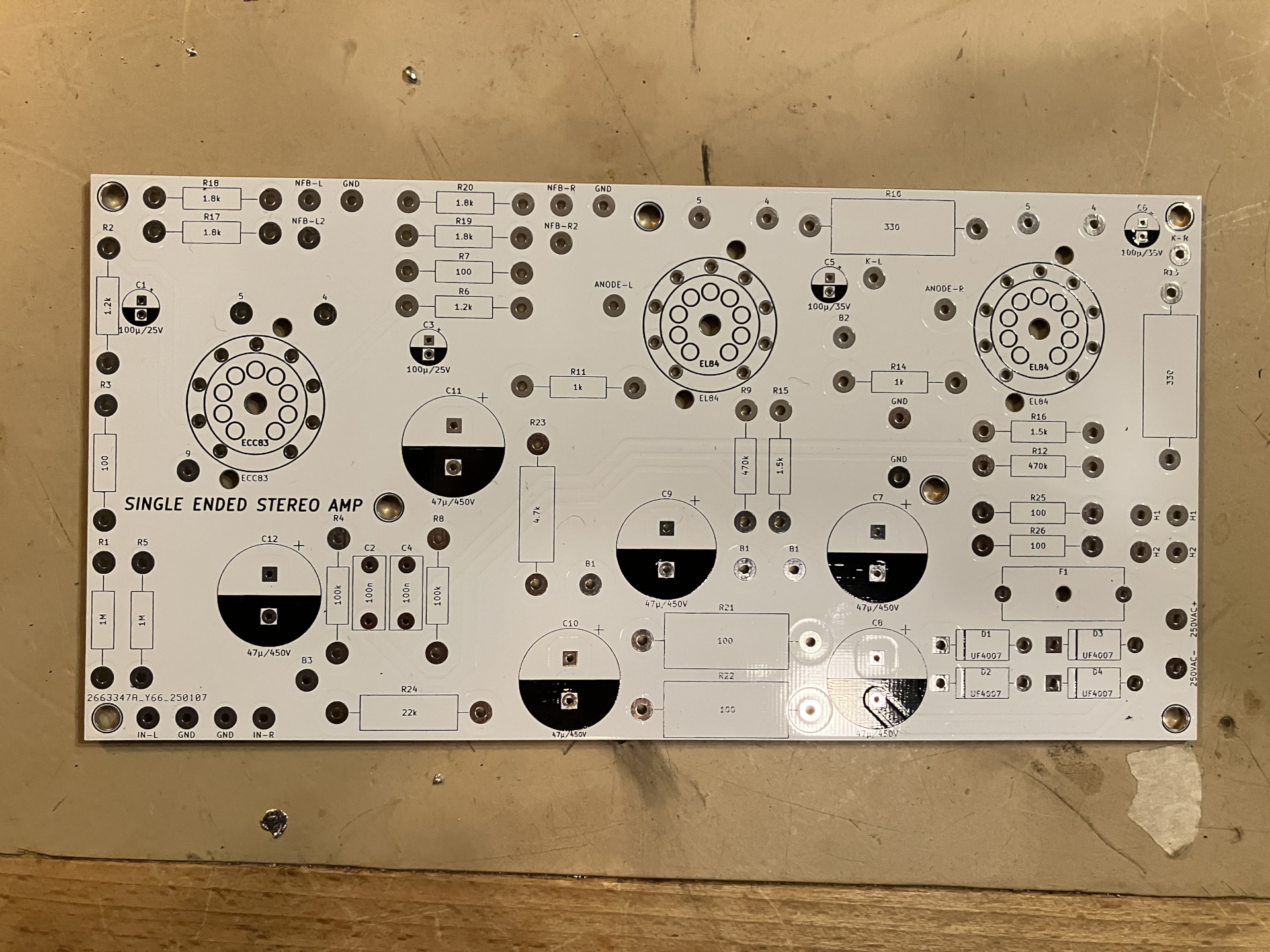

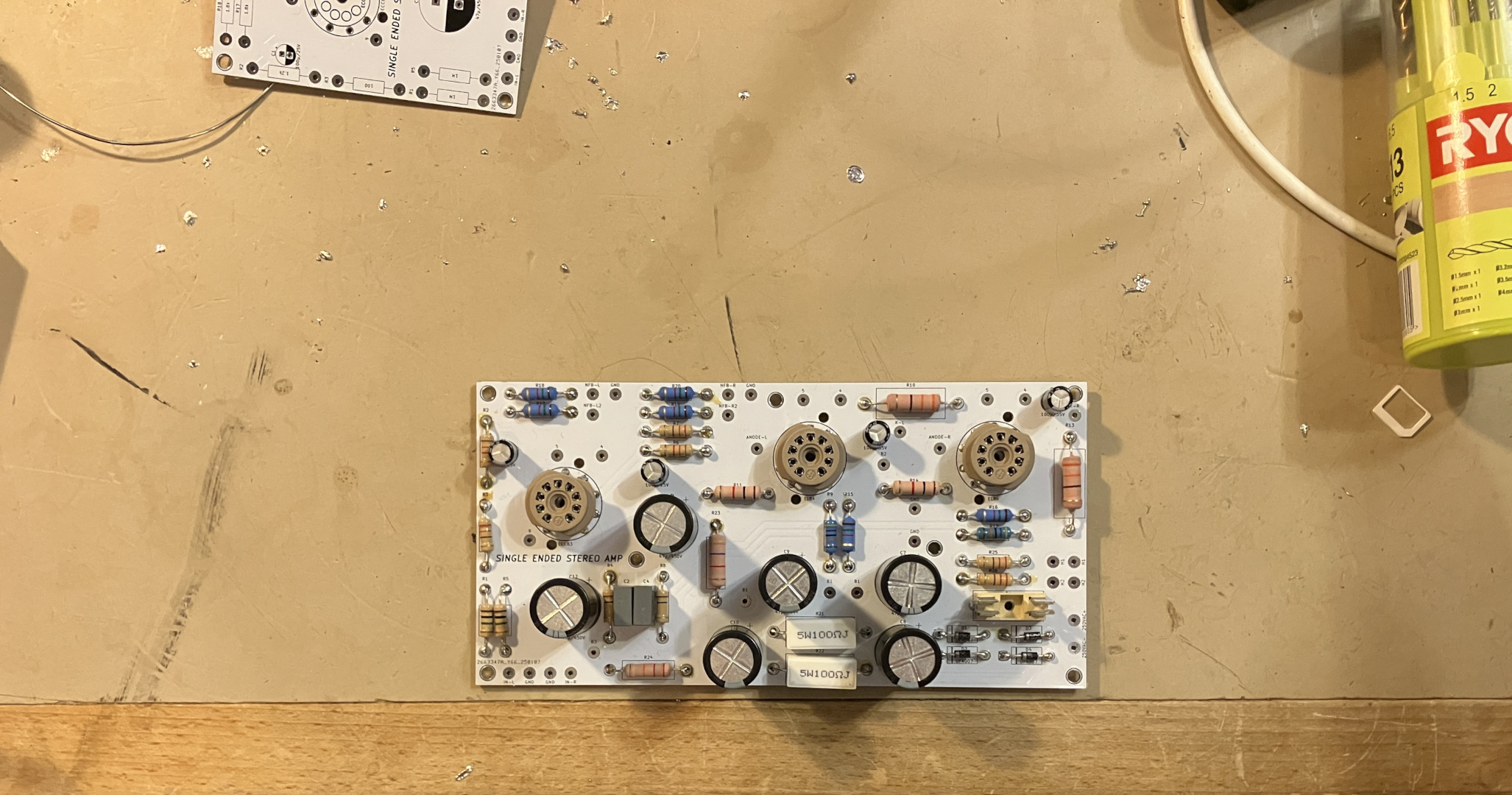

Pictures of the board



[Lauri]

Updated schematic and gerber files

hifisimple.pdf

(208.67 KiB) Downloaded 761 times

hifisimple-200mmx100mm-update1.zip

(228.62 KiB) Downloaded 629 times

[Lauri]


[Heikki]

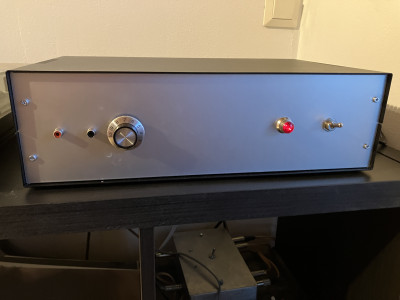

Front

[Lauri]
