Simple low power tube HiFI amp

[Heikki]

Here's a simple tube amp I'm building next. It is very simple single ended amp with EL84 output tubes.

I'll be posting pictures when the project progresses.

Schematic

hifisimple.pdf

(209.67 KiB) Downloaded 135 times

Gerber files for the board

hifisimple-200mmx100mm.zip

(227.72 KiB) Downloaded 55 times

[Heikki]

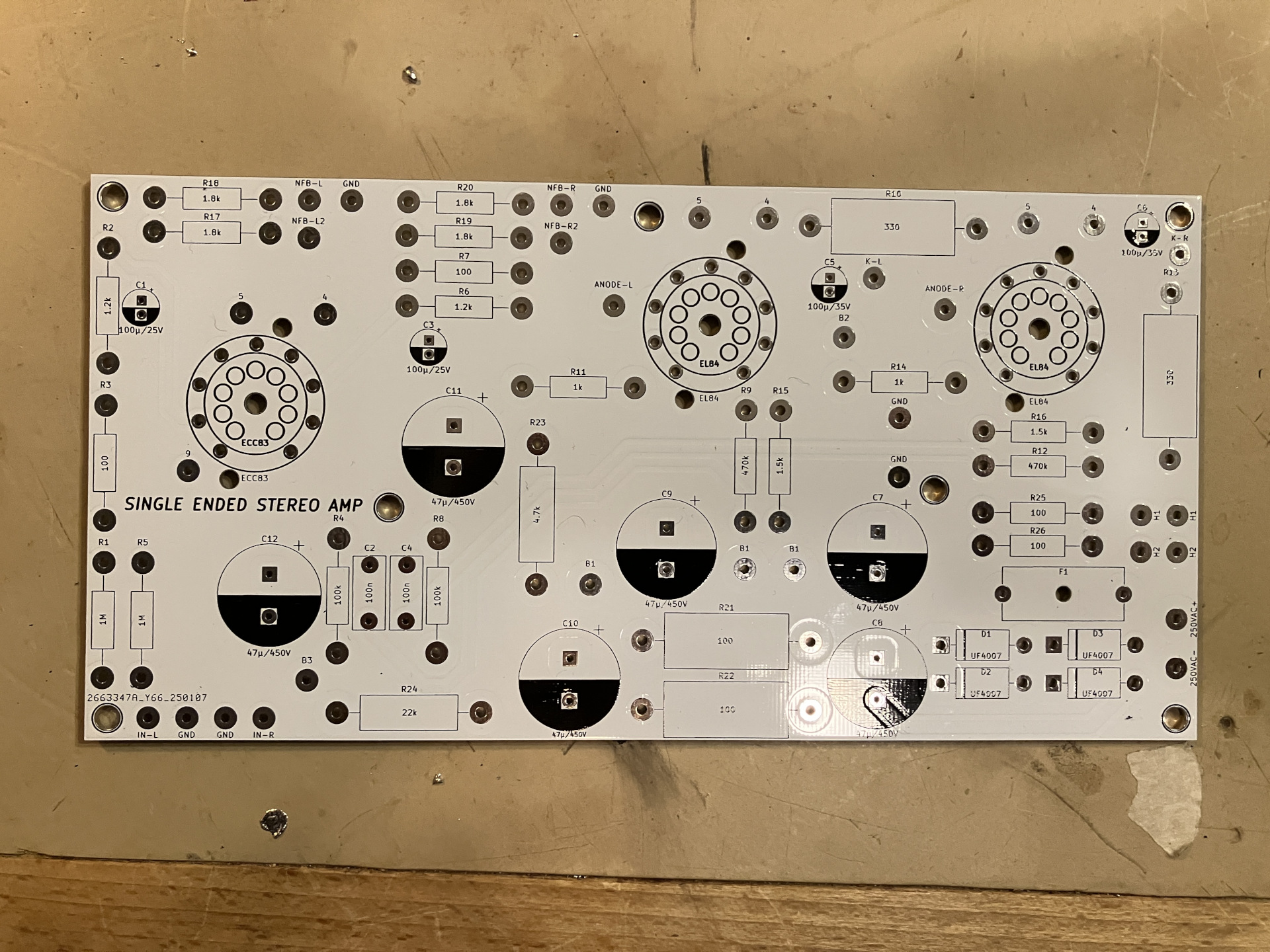

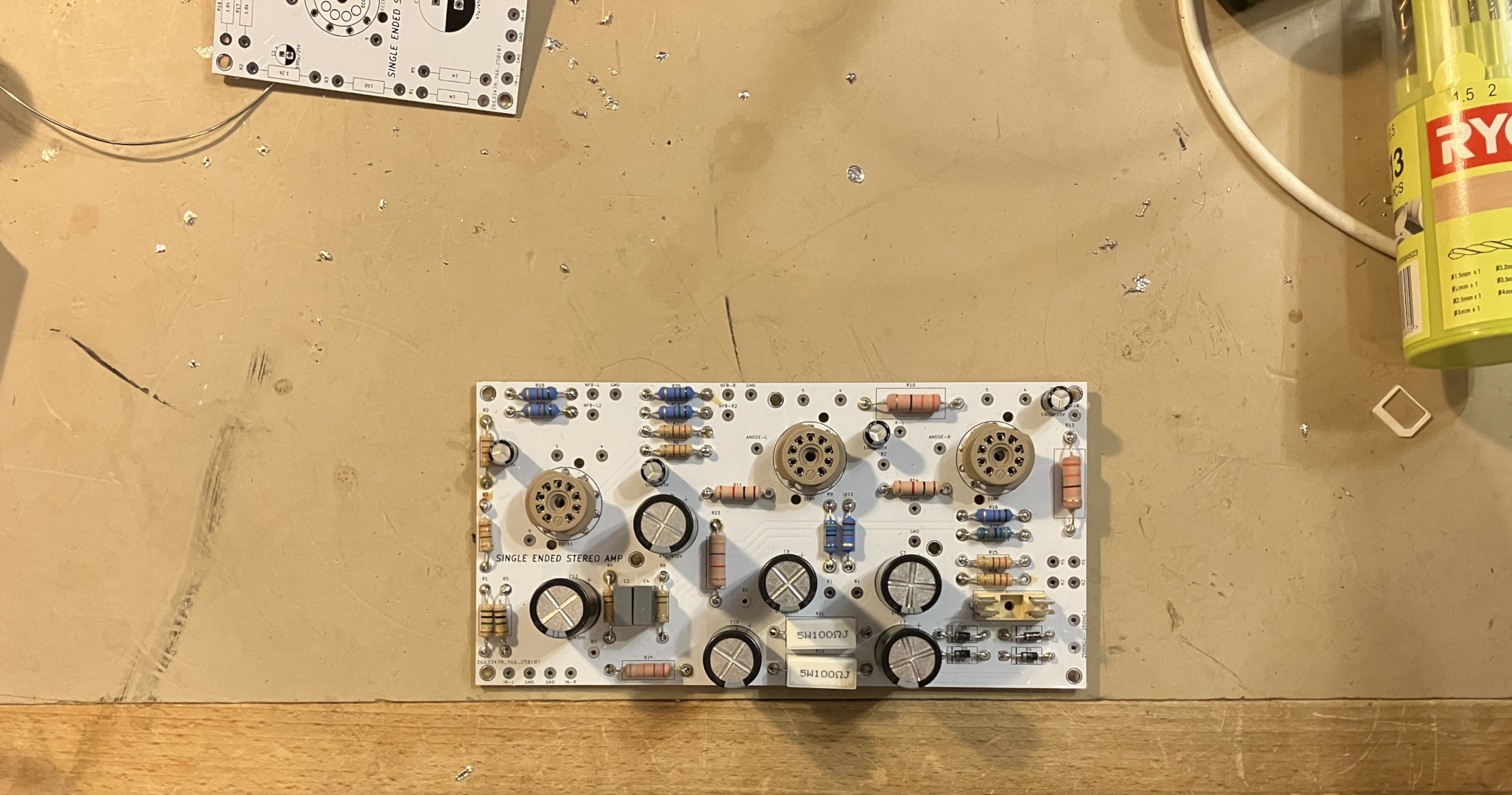

Pictures of the board



[Lauri]

Updated schematic and gerber files

hifisimple.pdf

(208.67 KiB) Downloaded 117 times

hifisimple-200mmx100mm-update1.zip

(228.62 KiB) Downloaded 49 times

[Lauri]


[Heikki]

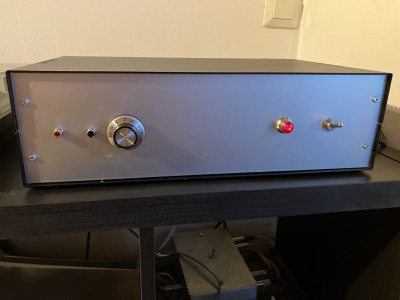

Front

[Lauri]
